CGM-031 Series
A. Description
PTFE powders with medium particle size for compression molding.
B. General Properties of PTFE
l Excellent chemical inertness
l Outstanding resistance to chemical corrosion, such as strong acid, alkali, strong oxidant, etc.
l Exceptional resistance to high & low temperature, and to abrasion.
l Can be used at temperature range from -200~250℃ for a long period.
l Superior electric insulation, which is not affected by temperature and frequency.
l Non-adhesive to all other materials.
l Non-absorption of moisture
l Flame retardation.
C. Main application
To be made into rods for skivings, gaskets, and parts, etc by compression molding widely used in chemical, mechanical, petroleum, pharmaceutical, electronics, and optical industries.
D. Technical Data
|
Properties |
PTFE CGM 031 |
|
Appearance |
White powder |
|
Tensile Strength |
min. 25.5 MPa |
|
Elongation at Break |
min. 250 % |
|
Moisture Content |
max. 0.04% |
|
Bulk Density |
420 +/- 100 g/l |
|
Average Particle Size |
70 ~ 90 µm |
|
Standard Specific Gravity |
2.13-2.19 |
|
Shrinkage |
max. 4.5% |
|
Melting point |
327±5 ℃ |
E. Packing, Storage and Transportation

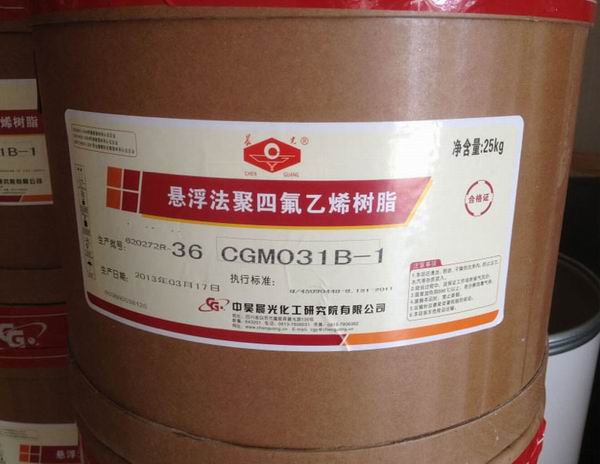

a) 25kg net packed in double PE plastic bags with a cardboard drum outside.
b) Transported as non-hazardous chemicals. Avoid damped, rolling and fiercely shaking during transportation.
c) Store in clean, cool(0~20℃) and dry place. Avoid contamination by foreign substances such as moisture and dust which will affect the appearance of the product.
F. Safety Precaution
Toxic gases will be produced when the material is heated above 260℃. Ventilation system must be provided in sintering areas. Smoking is prohibited in contact with the product.
G. Shelf Life
The product could be stored for a long time in clean, dry place with temperature during 0~30℃.
|
