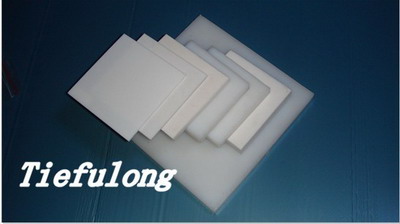

PTFE sheet

Productname:PTFE sheet

Details

Products Description:
PTFE Molded sheet is manufactured by suspend PTFE resin after molding. It has the best ability to anti chemistry corrosion, and non-aging, and can be used under -180~ +260 without load, and it has the lowest fiction coefficients in known solid materials.

Applications:
PTFE Molded Sheet can be used to make corrosion-resistant liner, seal, lining and gasket, scrap, guide rail, dielectric material for different frequency, bridge bearing slide.

Technical Data:

Properties	Unit	Result
Apparent density	g/cm3	2.10-2.30
Tensile strength (min)	MPa	15
Ultimate elongation (min)	%	150
Dielectric strength(min)	KV/mm	10
Thickness	mm	1-100

Specifications:

Length(mm) x Width(mm)	Thickness(mm)
	Norminal	Tolerance
150 x 150	1.0-100	0.30 ~ 0.50
250 x 250	1.5-100	0.30 ~ 0.50
300 x 300	1.5-100	0.30 ~ 0.50
450 x 450	1.5-100	0.30 ~ 0.50
600 x 600	2-100	0.30 ~ 0.50
800 x 800	2-100	0.30 ~ 0.50
1000 x 1000	3-100	0.30 ~ 0.50
1200 x 1200	3-100	0.30 ~ 0.50
1500 x 1500	5-100	0.50 ~ 0.80
1600 x 1600	5-100	0.50 ~ 0.80
2000 x 1000	5-60	0.60 ~ 1.00
1800 x 1800	5-60	0.60 ~ 1.00

Remarks:
We can also produce molded teflon PTFE sheet in other sizes and thickness according to customer's requirement.
