100% vigrin PTFE tube

Productname:100% vigrin PTFE tube

Details

Material: 100% PTFE granular resin
Style: Molded PTFE Tube
Diameter: 25mm ~ 1200mm
Length: Unlimited
Density: 2.1 ~ 2.3 g/cm3
Temp: -180C ~ + 260C



Products Description:

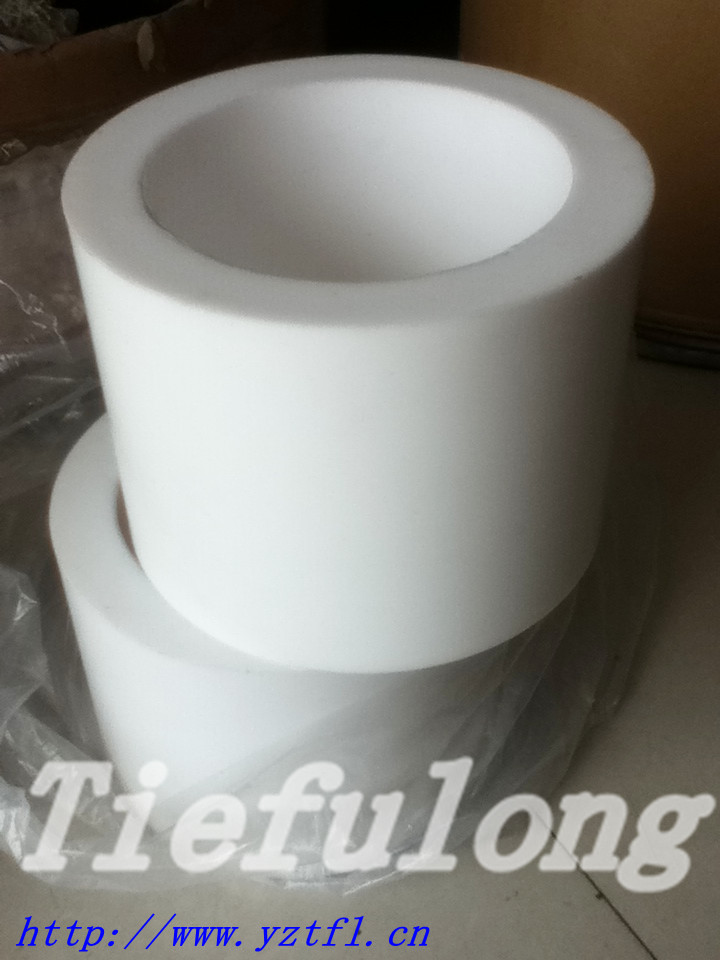

Molded teflon PTFE tube is manufactured by technics of molding method in the out diameter from 25 to 1200mm with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of extruded teflon PTFE tube has similar friction levels to ice. Extruded teflon PTFE tube can work at -180C +260C and is the best electrical insulator of all known plastics.

Application:
Molded teflon PTFE tube can be used as wire and cable jacket, inner lined pipes for corrosive fluids and used in hydrochloric acid heat exchanger, etc.

Technical Data:

Property	Unit	Result
Apparent Density	g/cm3	2.10-2.30
Tensile Strength	MPa	18
Crack Elongation	%	230
Working Temperature	C	-180C ~ + 260C
Out Diameter	25mm-1200mm
Length ( mm )	Unlimited

Specifications:
    outer Dia: 25mm-1200mm wall thickness:5-500mm  length:from 100-300mm

Specification	External diameter (mm)		Thickness (mm)		Length (mm)
	Call	Tolerance	Call	Tolerance
Pressed PTFE tubing	0.5~4.0	0.1~0.3	0.2~1.0	0.06~0.3	4000
	5.0~25.0	0.5~1.0	1.0~25.0	0.3~0.5
Extruded PTFE Tubing	25 ~ 410	0.5~3.0	22 ~ 400	0.5~3.0	4200
Molded PTFE Tubing	10~500	0.5~5.0	7	0.5~0.5	300

Remarks:
We can also produce Molded  PTFE tube in other sizes and thickness according to customer's requirement.
